Watch the bond happen in real time

Process live view

Benefits.

The ability to observe bond formation in real-time is an important advantage for process development.

The visual information during bonding allows process parameters such as temperature and force to be adjusted as required. This feature can significantly reduce process development time and is particularly useful for interlayer bonding with adhesives, glass frit or metals.

Adhesive Bonding.

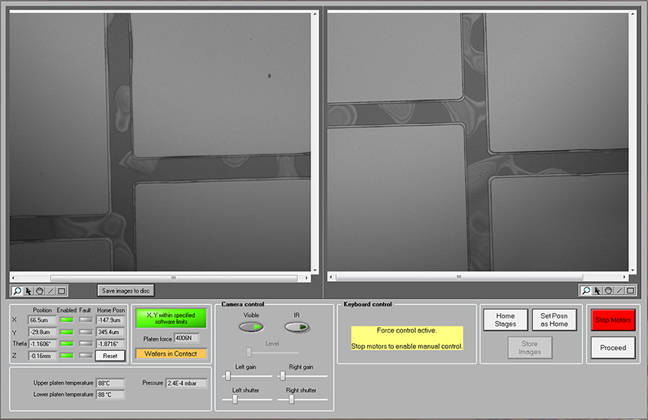

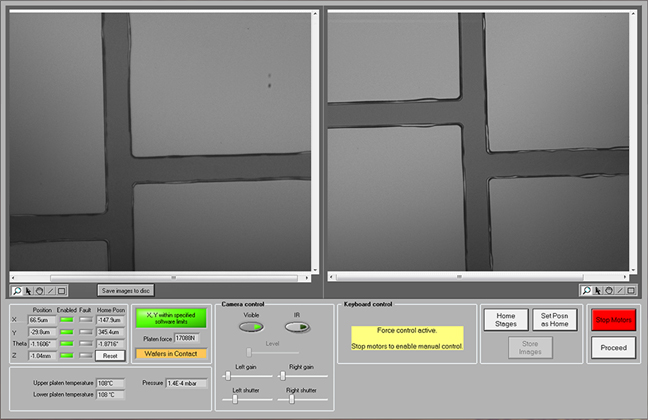

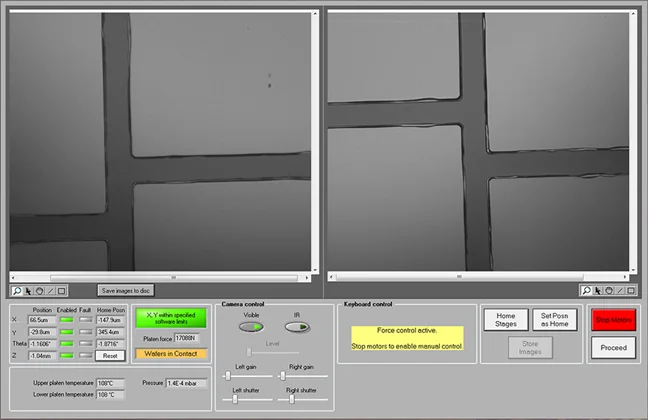

Our live view feature enables the user to capture the exact moment of bond formation while heating the wafers. Observing the epoxy flow allows adjusting the bond force and temperature in real time to create a void free seal with the desired bond line spread. This gives much better understanding of the process and easily identifies the parameters that may need further adjustment.

Download Publication

Did you know?

Live view allows defining the best temperature for alignment of wafers with different CTEs – the user can clearly see how the mismatch changes with temperature.

Join us

No results See all results

This website uses cookies to improve your experience. By using this website you agree to our Cookie Policy.
Read more

Independent Heating

Upper and lower wafers can be heated independently to different temperatures and with different ramp rates. The differential temperature can be as high as 350°C (depending on options). This feature can be useful for processes where one wafer needs outgassing while the other one has to stay cold or for activating the getter on one wafer.

Multi stack bonding

Thick wafer bonding and multi stack wafer bonding is possible, accommodating up to 30mm thick stacks.

In-situ Chemistry

Various chemistries can be introduced into the chamber using either vapour injection system (DI water or acid) or pressure control system (gas). Wafers held in separation can be treated just before contact, for example for Copper oxide removal.

Efficient Outgassing

Large wafer separation allows more effective evacuation of the space between the wafers. All surfaces of cavities can be efficiently outgassed while the wafers are heated. It is particularly important for vacuum or gas encapsulation.
